2.0mm Soft Magnetic Alloy Cold Rolled Strip 1J38 Ni38Cr13

Brand Name : XUNSHI

Model Number : 1J38

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 50kg

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500 kg per month

Delivery Time : 30-35 days

Packaging Details : Plywood case

Product Name : Magnetic Temperature Compensation Alloy

Grade : 1J38

Density : 8.14g/cm

Form : Cold Rolled Strip

Spec : GB/T 15005-1994, GB/T 32286.1-2015

brand : XUNSHI

Contact Now

Soft Magnetic Alloy 1J38(Ni38Cr13)

1J38 Magnetic Temperature Compensation Alloy is a low Curie temperature (25℃ ~200℃) alloy, the obviously feature is that below the Curie temperature, the magnetic sense value decreases sharply with the temperature rise, and almost to be a linear relationship.

Applications:

Magnetic temperature compensation soft magnetic alloy, in the ambient temperature range, the Magnetic induction strength changes dramatically with the temperature changing, the alloy is used to manufacture the magnetic division compensation components in the electromagnetic circuit and the permanent magnetic circuit, etc

1J38 Chemical composition (%)

element C P S Mn Si Ni Cr Fe
weight ≤0.05 ≤0.020 0.020 0.30-0.60 0.15-0.30 37.5-38.5 12.5-13.5 banlce

Standard: GB/T 15005-1994, GB/T 32286.1-2015

Density: 8.14g/cm

The form of supply

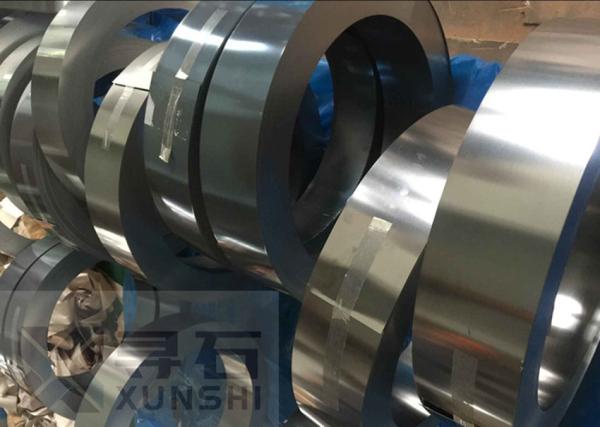

Cold rolled strip, delivered without heat treatment

Thickness:0.1-2.0mm, Width:20-200mm.

2.0mm Soft Magnetic Alloy Cold Rolled Strip 1J38 Ni38Cr132.0mm Soft Magnetic Alloy Cold Rolled Strip 1J38 Ni38Cr13
