Inconel 600 is a nickel-chromium alloy used for applications that require corrosion and high temperature resistance. This nickel alloy was designed for service temperatures from cryogenic to elevated temperatures in the range of 2000° F. It is non-magnetic, has excellent mechanical properties, and presents the desirable combination of high strength and good weldability under a wide range of temperatures. The high nickel content in Inconel 600 enables it to retain considerable resistance under reducing conditions, makes it resistant to corrosion by a number of organic and inorganic compounds, gives it excellent resistance to chloride-ion stress-corrosion cracking and also provides excellent resistance to alkaline solutions. Typical applications of this nickel alloy include the chemical, pulp and paper, aerospace, nuclear engineering and heat treating industries.
Chemical compositions
| element | C | Mn | Si | P | S | Ni | Cr | Fe | Al | Ti | Cu |
| Content % | 0.05-0.10 | ≤1.0 | ≤0.50 | ≤0.020 | ≤0.015 | ≥72 | 14-17 | 6.0-10.0 | ≤0.30 | ≤0.30 | ≤0.50 |
Equal grades
- UNS N06600
- Alloy 600
- NiCr15Fe
- NS312
- NS3102
Characters of Inconel 600
- Resistant to a wide range of corrosive media
- Virtually immune to chlorine ion stress corrosion cracking
- Non-magnetic
- Excellent mechanical properties
- High strength and good weld ability under a wide range of temperatures
Applications of Inconel 600
- Chemical Industry
- Aerospace
- Heat treating industry
- Pulp and paper industry
- Food processing
- Nuclear Engineering
- Gas turbine components
Standards
ASTM B166, B168, B167, B163
Available forms
Wire, tube, plate, pipe, round bar, forging, strip
About XUNSHI
Suzhou Xunshi New Material Co. Ltd- referred as XUNSHI hereafter, is a professional manufacturer of high-performance alloy products. XUNSHI is engaged in supplying high quality and cost-effective Superalloy, Anti-Corrosion Alloy, Precision Alloy, Special Stainless Steel and Magnetostrictive Material to customers worldwide.
Why XUNSHI
· Highly experienced in alloy industry
· Top experts of industry in China
· Advanced technology and process from top famous institutes in China
· Advanced devices through whole production and inspection process
· Strict quality control system
· Company motto: best service, most value
· Smart sales policy
Service Items of XUNSHI
· Non-standard product research and pre-production
· Fabrication of products
· Cutting, splitting for sheets and plates in stock
· Heat treatment (Solution treatment, aging harden treatment, anneal, spring temper, quench etc.)
· Surface finish (peeling, gridding, polishing)
· Logistics service
· Customized packing service (also for exporting)
· Import and export (XUNSHI is certificated)
· Document translation
· Hard-to-find material sourcing
Customers of XUNSHI
Customers of XUNSHI are all over China (Taiwan and Hong Kong included). And we are exporting to USA, Canada, Italy, UK, Poland, Greece, Russia, Turkey, Iran, Israel, South Africa, South Korea, North Korea, India, Argentina, and Brazil and so on. Customers from 30+ countries trust us.
Where is XUNSHI
A- XUNSHI is in Huaqiao, Kunshan, 215332 China, which is very closed to Shanghai.
B- Xunshi is around 80KM from Shanghai Pudong International Airport (PVG).
C- 20KM from Shanghai Hongqiao Airport
D- 20KM from Shanghai Hongqiao Railway Station
E- You can contact XUNSHI sales for a pickup service.
Product Tags:
|
|

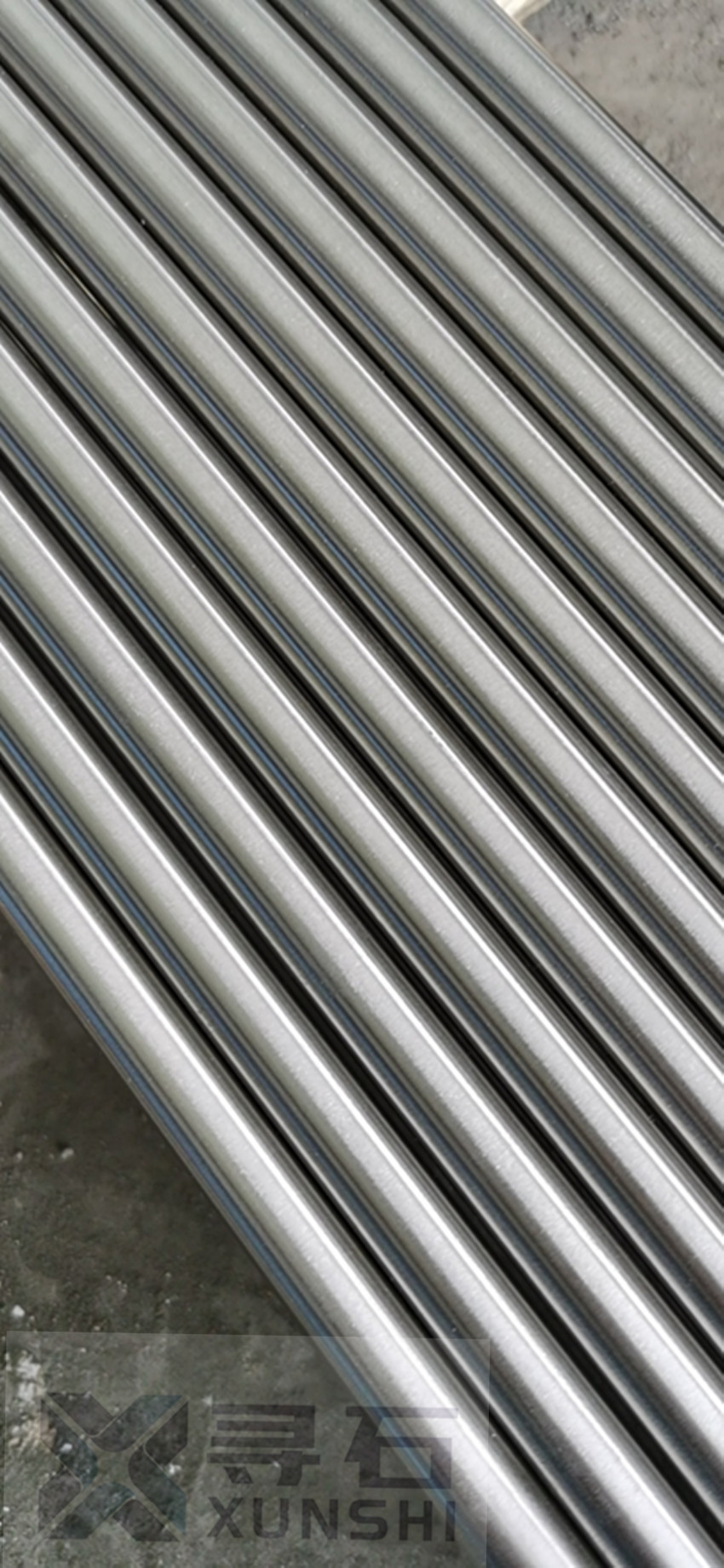

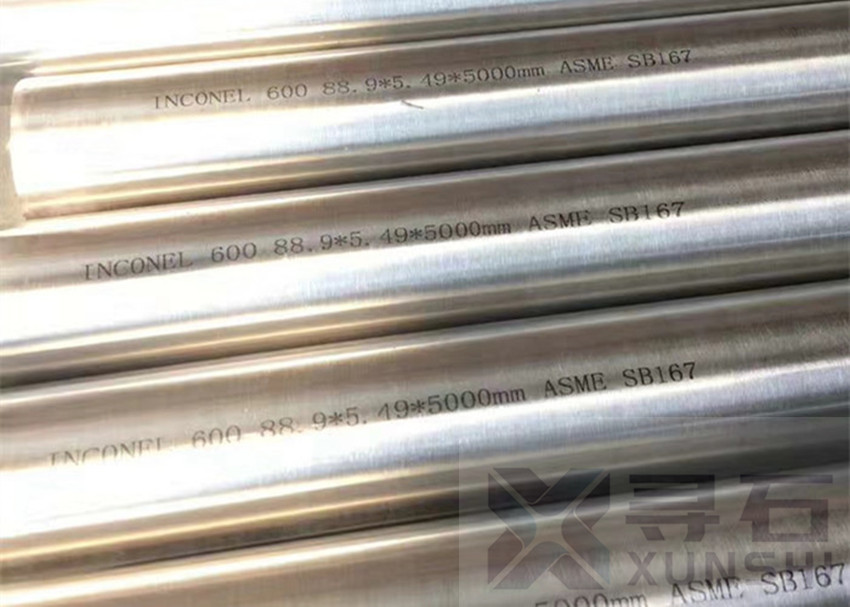

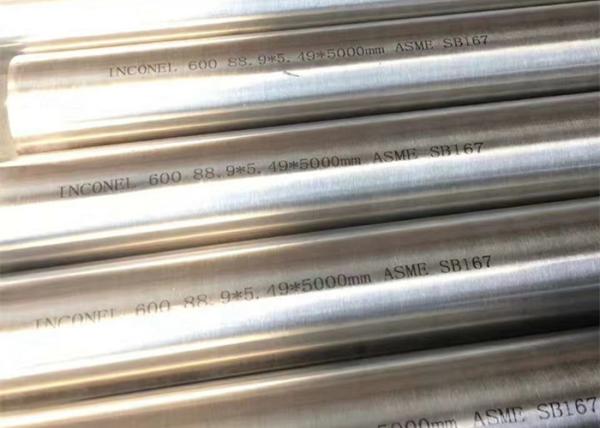

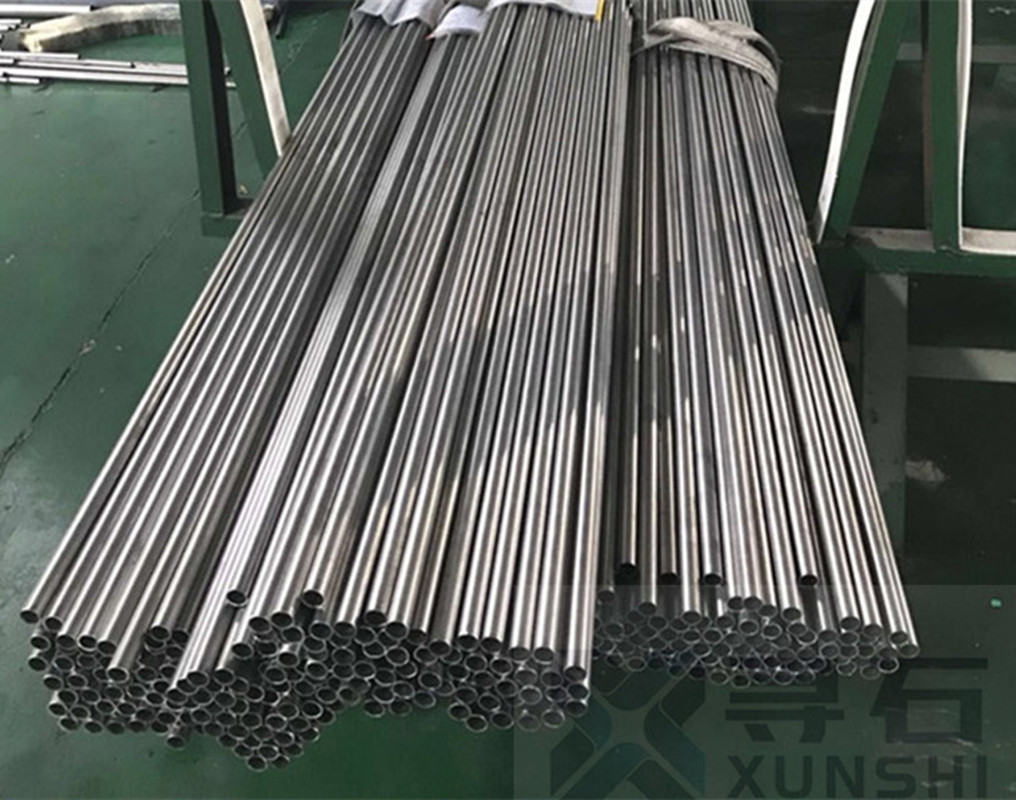

Inconel 600 Nickel Chromium Alloy for Chemical Industry Application Images
|
